Profile Series DP33
Air-Cooled Panel-Mounted Air Conditioners
Legacy products are no longer in normal production. Consult factory for availability.
We recommend current series
Guardian
,
GuardianX
or
Slimkool
as possible alternatives.
Close
Image 1 of 1
Maximize image
Restore image
NEMA
TYPE 12 & 3R
MAINTAINED
Select Model Type
Electrical (Volts/Hz):
115/60
100/50
230/60
230/50
Model
NEMA
Rating
UL/CUL
Listed or
Recognized
BTU/H
Capacity
95/95
Rating
BTU/H
Ambient Temp.
Volts
Hz
Running
Amps
Approx.
Weight
°F
°C
Max./Min.
Max./Min.
lbs
kg
KA4C5DP33L
3R & 12
Listed
5000
4000
131/-20
55/-28
115/100
60/50
9.3/9.0
95
44
K2A4C5DP33L
3R & 12
Listed
5000
4000
131/-20
55/-28
230
60/50
4.5
95
44
Rating shown is for operation at maximum ambient temperature.
TECHNICAL DATA
Model
NEMA
Rating
BTU/H
Capacity
Volts/Hz
KA4C5DP33L
3R & 12
5000
115/60V, 60/50Hz
UL/CUL Listed or Recognized: Listed
95/95 BTU Rating: 4000
Ambient Max./Min. °F: 131/-20
Ambient Max./Min. °C: 55/-29
Running Amps: 9.3/9.0
Approx. weight: 95 lbs. (43 kg)
K2A4C5DP33L
3R & 12
5000
230/60V, 60/50Hz
UL/CUL Listed or Recognized: Listed
95/95 BTU Rating: 4000
Ambient Max./Min. °F: 131/-20
Ambient Max./Min. °C: 55/-29
Running Amps: 4.5
Approx. weight: 95 lbs. (43 kg)
Rating shown is for operation at maximum ambient temperature.
Standard Features
Accessories & Options
Airflow Diagram

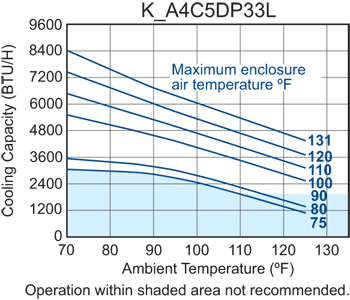

Performance
Arrangement
Similar Models
Documents
•
Baked Powder Finish
Heavy-duty steel shell with powder-baked finish (ANSI 61 gray). Custom color options are available.
•
Built-in Condensate Evaporator
Built-in Condensate Evaporator eliminates need for draining condensate under normal operating conditions. May not be adequate in extremely high humidity with open or leaky enclosure. Overflow condensate drain fitting and hose are included.
•
CFC-Free Refrigerant
CFC-free R134a Refrigerant is used
•
Closed-Loop Cooling
The enclosure interior airflow system is isolated from the ambient airflow or waterflow system. No ambient air can invade the cool, dehumidified sensitive component compartment.
•
Condenser Impeller Speed Controller
A solid state sensor reacting to the condenser coil temperature modulates the condenser impeller between minimum and maximum speed based on the coil temperature. This reduces noise levels, fan cycling, compressor cycling and prevents the unit from freezing.
•
Epoxy-Coated Condenser Coil
This coating will withstand 1000 hours of salt spray per the ASTM B 117 test method. Also see Stainless Steel Shell or Integrity NEMA 4/4X Air Conditioners. NOTE: Severe operational environments such as waste water treatment and salt spray are likely to cause corrosion failure over a period of time regardless of coating. Warranty: Corrosive conditions may affect the warranty coverage. Consult factory for warranty limitations in corrosive environments. NOTE: For additional corrosion protection options, contact factory.
•
Heavy-Duty Steel Shell
•
Low Temperature Control Thermostat
Electronic Thermostatic Low Temperature Control prevents over-cooling and provides energy-efficient operation.
•
Mounts Internally or Externally
The Profile Series Air Conditioners have been engineered to be mounted either outside or inside of an enclosure, offering an unprecedented degree of flexibility. Air conditioners are traditionally mounted on the outside of an enclosure because space inside an enclosure is at a premium. The dimensions of the Profile Series make the option of internal mounting a reality, which allows the unit to fit into spaces previously too small for an air conditioner. With such a narrow depth, the Profile Series is the thinnest line of indoor/outdoor air conditioners Kooltronic has ever developed.
•
NEMA 12 & 3R Ratings Maintained (UL50)
All units are fully gasketed for tight, leakproof installation, in compliance with the NEMA 12 and 3R Enclosure Ratings.
•
Six-Foot [1.8m] (minimum) 3-Wire Power Cord
•
UL/CUL Listed
•
Compressor Short Cycle Protector
Available as a Standard Feature on models with Programmable Thermostat. Protects the compressor from possible damage due to harmful short cycling, (frequent starting) where temperature controls enable the compressor to restart frequently or after a power interruption. These conditions could be due to low or fluctuating heat loads within the electrical enclosure or a power failure. The Compressor Short Cycle Protector will prevent the compressor from starting when it has been shut off for less than several minutes or the power was interrupted. By limiting the number of compressor starts per hour, the life of the compressor is prolonged. It is recommended where installations are subject to solar gain and or changes in the enclosure internal load due to the degree of usage of the equipment being cooled. It is also recommended where higher capacity units are specified in anticipation of the future addition of heat producing equipment being added to the enclosure.
•
Enclosure Heater
Eliminates damaging condensation, increasing reliability of electrical enclosure components.
•
Filter
All KOOLTRONIC filters consist of a multi-layer grid of sturdy corrugated aluminum, securely held in a one-piece aluminum frame. Filters are required wherever air is drawn into an electronics enclosure or related cooling equipment to keep internal parts as clean as possible.,A non-drying adhesive coating traps a high percentage of particulate matter. These filters are reuseable, they may be washed and recoated with the appropriate filter recoating adhesive. Replacements are available for those which become damaged or otherwise non-serviceable.
•
Filter Recoating Adhesive
This compound is a superior product for recoating filters after washing. The adhesives penetrate dirt layers to keep the filter surface tacky for longer effective performance between washings.
•
Internal Corrosion Protection
This protection increases reliability in hostile environments. This protection for the refrigeration system consists of an air cured coating applied to the brazed joints on the condenser side, providing a degree of protection from corrosive environments. This coating will withstand 1000 hours of salt spray per the ASTM B 117 test method. Also see Stainless Steel Cabinet or GuardianX Air Conditioners. NOTE: Severe operational environments such as waste water treatment and salt spray are likely to cause corrosion failure over a period of time regardless of coating. Warranty: Corrosive conditions may affect the warranty coverage. Consult factory for warranty limitations in corrosive environments. NOTE: For additional corrosion protection options, contact factory.
•
Other voltages and frequencies
•
Remote Thermostat Relay
Used only with a user-installed remote thermostat or the Kooltronic KLLC100 Lead Lag Controller, this 24VAC relay can be used for the sequential operation of two units or with a single unit. An external terminal strip is provided for field interconnection. NOTE: User-installed thermostat must have a set point of 75°F with a differential of 11°F. NOTE: A factory installed thermostat is not provided with this option.
•
Replacement Filters
All KOOLTRONIC filters consist of a multi-layer grid of sturdy corrugated aluminum, securely held in a one-piece aluminum frame. Filters are required wherever air is drawn into an electronics enclosure or related cooling equipment to keep internal parts as clean as possible.,A non-drying adhesive coating traps a high percentage of particulate matter. These filters are reuseable, they may be washed and recoated with the appropriate filter recoating adhesive. Replacements are available for those which become damaged or otherwise non-serviceable.
•
Special materials or finishes
•
Special motors, line cords or connectors
•
Stainless Steel Shell
•
Temperature Alarm
A thermostat is mounted inside the cabinet and attached to a sensor in the warm air return. When the air temperature increases to the set point, a signal is sent to a terminal block. User-installed wiring from the terminal block to local and/or remote warning devices (light, bell, siren, etc.) can be for normally open or closed operation.
Click on image for larger view
Close
Image 1 of 1
Maximize image
Restore image
Dimensions, inches [mm], are for reference only and subject to change.
Click on image for larger view
Close
Image 1 of 1
Maximize image
Restore image
Dimensions, inches [mm], are for reference only and subject to change.
Dimensions, inches [mm], are for reference only and subject to change.
Model
Guideline
Dimensions
(H x W x D)*
CFM @0" S.P.
Profile DP17
17.89 x 12.26 x 7.31
0
Profile DP21 (Legacy)
20.97 x 13.55 x 7.31
0
Profile DP43 (Legacy)
43.40 x 17.09 x 9.10
0
Profile DP47 (Legacy)
46.93 x 17.09 x 9.07
0
*See model specifics for drawings, dimensions, mounting or cutout plans.
2-D Drawing of the Mounting Plan
KA4C5DP33L 2D Drawing of the Mounting Plan [26Kb]
3-D Solid Model
KA4C5DP33L 3D Solid Model [5423Kb]
Data Sheet
Profile Series DP33 Product Data Sheet [1432Kb]
GA Drawing
Profile Series DP33 General Arrangement Drawing [123Kb]
Installation Instructions
Profile Series DP33 Installation Instructions [205Kb]
Literature
Air Conditioner Quick-Sheet [105Kb]
Condensate Evaporator Kits [241Kb]
Condensation and Electronics [3983Kb]
Electronic Enclosure Cooling With Special Purpose Air Conditioners [254Kb]
Hazardous Location Series White Paper [234Kb]
Increasing the Lifespan and Reliability of Electrical Components [212Kb]
Slimkool Series Flyer [584Kb]
Profile Series Brochure (4 pages) [272Kb]
Kooltronic Custom Capabilities Flyer [2194Kb]
Kooltronic Custom Cooling Medical Flyer [211Kb]
Kooltronic Design Guide/Catalog (220 pages) [229400Kb]
Kooltronic Refrigeration System Manufacturing [55Kb]
Kooltronic Standard Warranty [55Kb]
Kooltronic Unit Longevity Press Release [167Kb]
NEMA Enclosure Ratings [91Kb]
Short-Form Catalog (16 pages) [897Kb]
Airflow Switch Data Sheet [159Kb]
Laboratory Environmental Testing Services [157Kb]
Powder Paint Application Facilities Flyer [165Kb]
Operator's Manual
KLLC100 Lead-Lag Controller (Discontinued) [38Kb]
KLLC480 Lead-Lag Controller [79Kb]
Profile Series DP33 Operator's Manual [210Kb]
Wiring Diagram
K2A4C5DP33L Profile Series Wiring Diagram (Point-to-Point) [87Kb]
Profile Series DP33 Wiring Diagram (Ladder) [48Kb]
Profile Series KA4C5DP33L Wiring Diagram (Point-to-Point) [91Kb]
