KFF20 Filter Fans

$552.00


Update Qty

Show Price Breaks ▼ Hide Price Breaks ▲

Quantity	Price Each
1-3	$552.00
4+	$502.00

18 in stock. Ships in 2-3 business days.

Select Model Type

Electrical (Volts/Hz):

Model	Volts/Hz	CFM @ 0" S.P.	Cutoff S.P.	RPM Nominal	Amps		Watts	Approx. Weight
Model	Volts/Hz	CFM @ 0" S.P.	Cutoff S.P.	RPM Nominal	Run	L.R.	Watts	Lbs.	Kg.
KBFF20AUE1	115/60	341	0.76					6.8	3.1
	115/50	306	0.64					6.8	3.1
KBFF20ANE1	115/60	341	0.76					6.8	3.1
	115/50	306	0.64					6.8	3.1
KBFF20AUE1R	115/60	341	0.76					6.8	3.1
	115/50	306	0.64					6.8	3.1
KBFF20ANE1R	115/60	341	0.76					6.8	3.1
	115/50	306	0.64					6.8	3.1
K2BFF20AUE1	230/60	341	0.76					6.8	3.1
	230/50	306	0.64					6.8	3.1
K2BFF20ANE1	230/60	341	0.76					6.8	3.1
	230/50	306	0.64					6.8	3.1
K2BFF20AUE1R	230/60	341	0.76					6.8	3.1
	230/50	306	0.64					6.8	3.1
K2BFF20ANE1R	230/60	341	0.76					6.8	3.1
	230/50	306	0.64					6.8	3.1

*Fan with grille airflow.

TECHNICAL DATA

Model Number	Volts/Hz	CFM @ 0" S.P.	Cutoff S.P.	Watts
KBFF20AUE1	115/60	341	0.76
Cutoff S.P.: 0.76 RPM Nominal: Amps, Run: Amps, L.R.: Approx. weight: 6.8 lbs. (3 kg)
KBFF20AUE1	115/50	306	0.64
Cutoff S.P.: 0.64 RPM Nominal: Amps, Run: Amps, L.R.: Approx. weight: 6.8 lbs. (3 kg)
KBFF20ANE1	115/60	341	0.76
Cutoff S.P.: 0.76 RPM Nominal: Amps, Run: Amps, L.R.: Approx. weight: 6.8 lbs. (3 kg)
KBFF20ANE1	115/50	306	0.64
Cutoff S.P.: 0.64 RPM Nominal: Amps, Run: Amps, L.R.: Approx. weight: 6.8 lbs. (3 kg)
KBFF20AUE1R	115/60	341	0.76
Cutoff S.P.: 0.76 RPM Nominal: Amps, Run: Amps, L.R.: Approx. weight: 6.8 lbs. (3 kg)
KBFF20AUE1R	115/50	306	0.64
Cutoff S.P.: 0.64 RPM Nominal: Amps, Run: Amps, L.R.: Approx. weight: 6.8 lbs. (3 kg)
KBFF20ANE1R	115/60	341	0.76
Cutoff S.P.: 0.76 RPM Nominal: Amps, Run: Amps, L.R.: Approx. weight: 6.8 lbs. (3 kg)
KBFF20ANE1R	115/50	306	0.64
Cutoff S.P.: 0.64 RPM Nominal: Amps, Run: Amps, L.R.: Approx. weight: 6.8 lbs. (3 kg)
K2BFF20AUE1	230/60	341	0.76
Cutoff S.P.: 0.76 RPM Nominal: Amps, Run: Amps, L.R.: Approx. weight: 6.8 lbs. (3 kg)
K2BFF20AUE1	230/50	306	0.64
Cutoff S.P.: 0.64 RPM Nominal: Amps, Run: Amps, L.R.: Approx. weight: 6.8 lbs. (3 kg)
K2BFF20ANE1	230/60	341	0.76
Cutoff S.P.: 0.76 RPM Nominal: Amps, Run: Amps, L.R.: Approx. weight: 6.8 lbs. (3 kg)
K2BFF20ANE1	230/50	306	0.64
Cutoff S.P.: 0.64 RPM Nominal: Amps, Run: Amps, L.R.: Approx. weight: 6.8 lbs. (3 kg)
K2BFF20AUE1R	230/60	341	0.76
Cutoff S.P.: 0.76 RPM Nominal: Amps, Run: Amps, L.R.: Approx. weight: 6.8 lbs. (3 kg)
K2BFF20AUE1R	230/50	306	0.64
Cutoff S.P.: 0.64 RPM Nominal: Amps, Run: Amps, L.R.: Approx. weight: 6.8 lbs. (3 kg)
K2BFF20ANE1R	230/60	341	0.76
Cutoff S.P.: 0.76 RPM Nominal: Amps, Run: Amps, L.R.: Approx. weight: 6.8 lbs. (3 kg)
K2BFF20ANE1R	230/50	306	0.64
Cutoff S.P.: 0.64 RPM Nominal: Amps, Run: Amps, L.R.: Approx. weight: 6.8 lbs. (3 kg)

*Fan with grille airflow.

Standard Features
Accessories & Options
Performance
Arrangement
Similar Models
Documents

• Mounts quickly and easily

Elastic hooks and gaskets allow the fans to be mounted in openings with a tolerance range of 0.059 inches [1.5mm] and a plate thickness of between 0.039 inches [1.0mm] and 0.079 inches [2.0mm]

• Attractive appearance
• Requires no mounting hardware
• Integral finger guards
• Most Assemblies are CE Approved
• Type 12 Rating Maintained (if used with provided filter)
• UL shielded ball bearing motors
• Integrated Sealing Gasket
• Washable Thermolinked Progressive Structure Synthetic Filter
• Electrical Connection: Terminal block 3 poles L-N-PE

• Grille Assembly for Filter Fans
• Replacement Filter for KBFF20AUE1 (P/N KFM20)
• Other voltages~ colors and reverse airflow may be available. Consult factory. Minimums may apply.

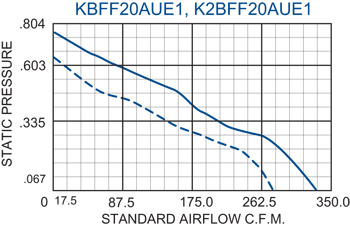

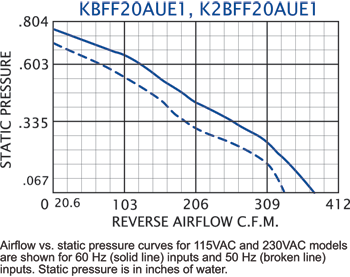

KFF20 Filter Fans performance chart #2

Click on image for larger view
General Arrangement Thumbnail

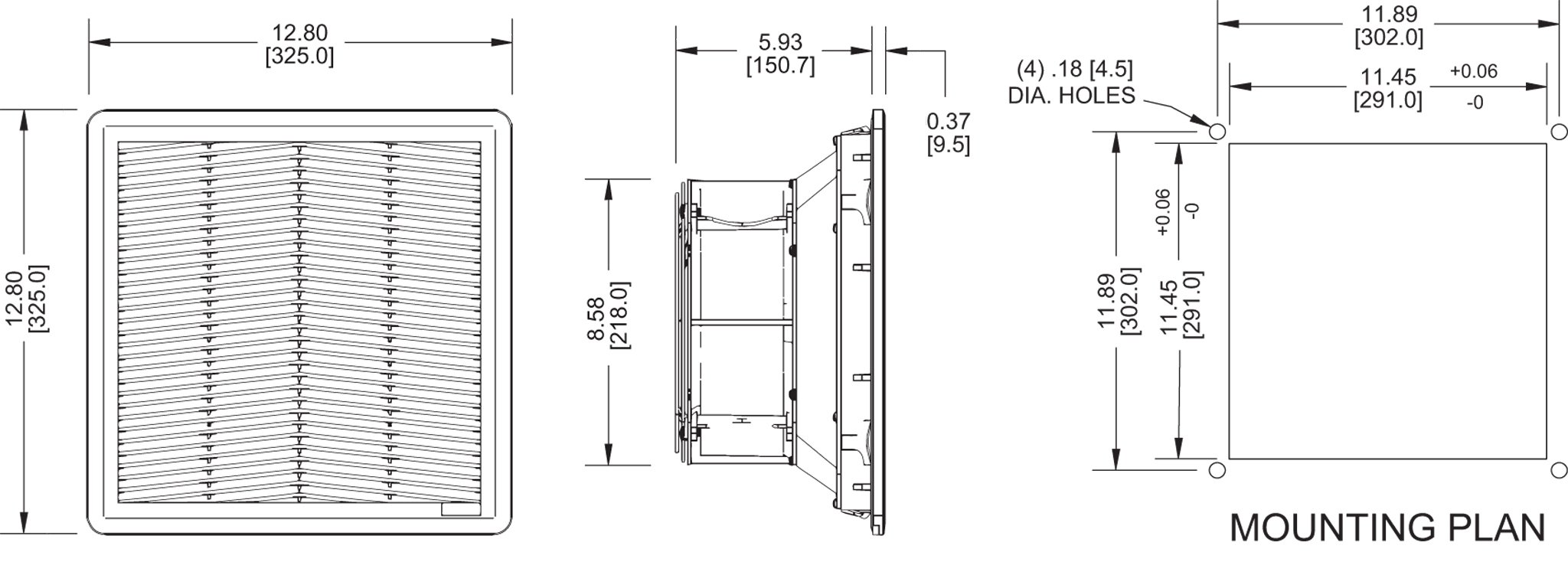

KFF20 Filter Fans general arrangement drawing

Dimensions, inches [mm], are for reference only and subject to change.

Model	Guideline Dimensions (H x W x D)*	CFM @0" S.P.
KFF08 Filter Fans	3.62 x 3.62 x 2.87	13-15
KFF12 Filter Fans	4.69 x 4.69 x 2.58	39-46
KFF13PAUF Filter Fans	6.97 x 6.97 x 3.44	56-65
KFF13PAUN Filter Fans	6.97 x 6.97 x 3.44	70-76
KBFF15AUF Filter Fans	8.78 x 8.78 x 4.54	135-159
KBFF15PAUF Filter Fans	8.78 x 8.78 x 4.54	62-70
*See model specifics for drawings, dimensions, mounting or cutout plans.
