Dual Thermostats

The KSDT Dual Thermostat houses two separate thermostats,
allowing the independent control of heating or cooling or
other equipment. Both thermostats offer wide adjustment
ranges and are color coded for easy function recognition.
Patent Pending.

Click to Request Quote	Model	NC (Red)	NO (Blue)
	KSDT72	0 - 60°C	0 - 60°C
	KSDT75	-10 - 50°C	20 - 80°C
	KSDT72F	32 - 140°F	32 - 140°F
	KSDT75F	14- 122°F	68 - 176°F
* Contact Kooltronic for quantity pricing.
Two thermostats in one unit - one Normally Closed (NC) & one Normally Open (NO) or two Normally Open (NO) Each with wide adjustable temperature range Available with °F or °C scale DIN rail mountable

Click to Request Quote	Model	NO (Blue)	NO (Blue)
	KSDT76	0 - 60°C	0 - 60°C
	KSDT76F	32 - 140°F	32 - 140°F

Click on image for larger view

TECHNICAL DATA

Sensor element:	Thermostatic bi-metal
Switching difference (hysteresis):	12.6°F ± 5.4°F (7°C ± 3K)
Switching capacity (max. load):	NC: 10A resistive/2A inductive @ 250 VAC
	NO: 5A resistive/2A inductive @ 250 VAC
	DC 30 W
EMI/EMC compliance:	EN 55014-1-2, EN 61000-3-2, EN61000-3-3
Connections:	4-pole terminal for AWG 14 max. (2.5 mm²)
Mounting:	Clip for 35mm DIN rail (EN 50022)
Housing:	Plastic, UL94V-0
Weight:	3.2 oz (90 g)
Protection type:	IP20
Operating/storage temperature:	-49 to 158°F (-45 to 70°C)

DIMENSIONS
Click on image for larger view

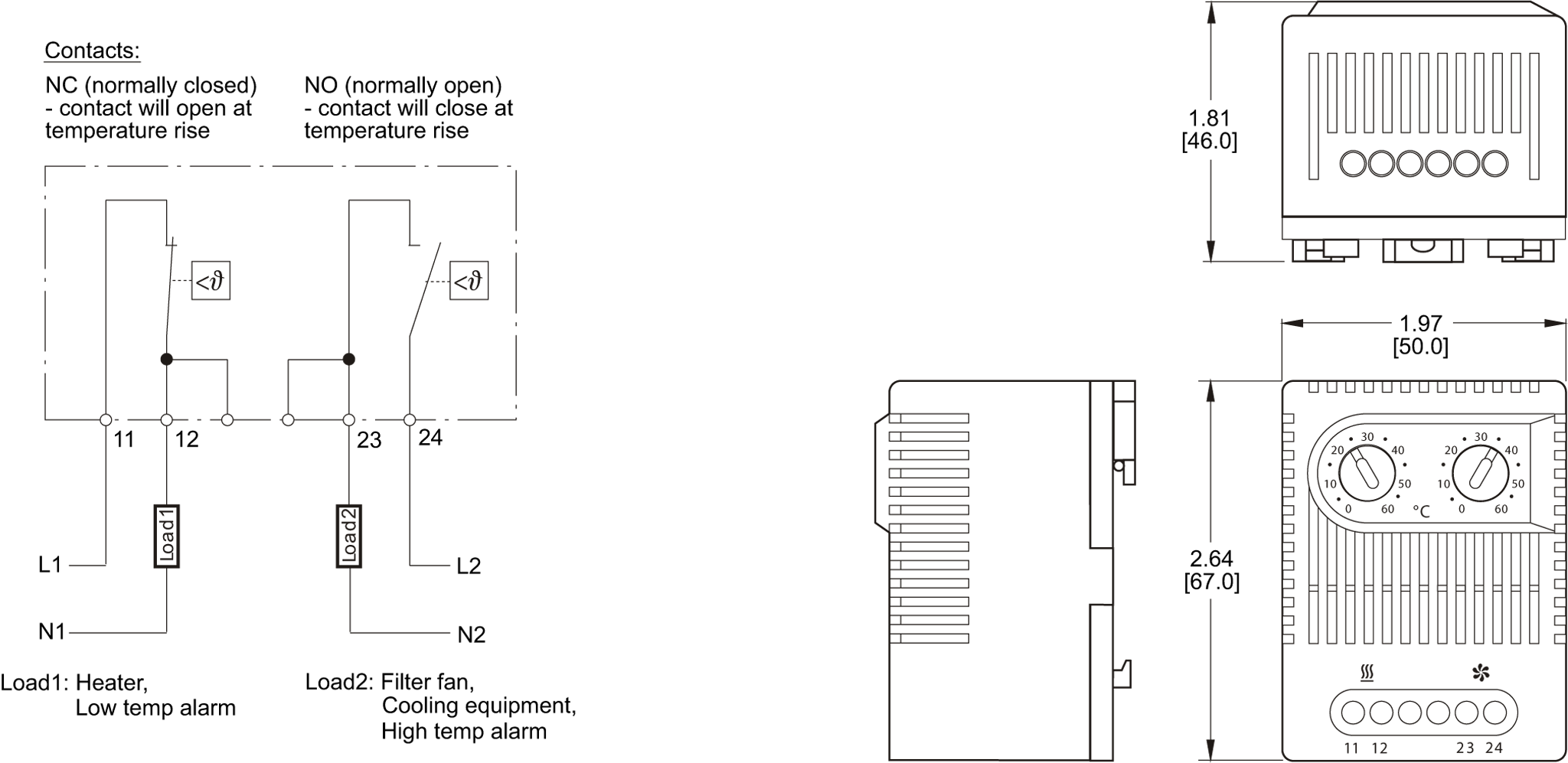

Dual Thermostat General Arrangement Drawing

DIMENSIONS
Click on image for larger view

Dimensions, inches [mm], are for reference only and subject to change.

Specifications are subject to change without notice. Suitability of this product for its intended use and any associated risks must be determined by the end customer/buyer in its final application.

HOW TO ORDER

Specify model number.
