Mechanical Thermostats - KFST

Click to Request Quote	Model	Calibration: Fahernheit or Celsius	Voltage	Control Type	Dial Color	Adjustment range
	KFSTF	Fahrenheit	110-250 VAC	Normally Open	Blue	-14 - +176°F
	KFSTCF	Fahrenheit	110-250 VAC	Normally Closed	Red	-14 - +176°F
	KFST	Celsius	110-250 VAC	Normally Open	Blue	-10 - +80°C
	KFSTC	Celsius	110-250 VAC	Normally Closed	Red	-10 - +80°C
* Contact Kooltronic for quantity pricing. The KFST Mechanical Thermostat is designed to control the air temperature inside of enclosures and control panels. It can be used for enclosure heaters, cooling equipment (e.g. filter fans), or signal devices.
Wide adjustment range Available with °F and °C Change-over contact High switching capacity DIN rail mountable

Click on image for larger view

TECHNICAL DATA

Sensor element:	Thermostatic bi-metal
Contact type:	Change-over, snap-action contact
Connections:	Screw terminal for AWG 14 max. (2.5 mm²)
Mounting:	Snap on 35mm DIN rail (EN 50022)
Housing:	PA66 - self extinguishing UL94V-0
Protection type:	IP - 20 EN 60529
Operating/storage temperature:	-40 to 194°F (-40 to 90°C)
Rated Current:	10A
Contact Current Carrying Capacity:	15A
Accuracy:	±3°C
Differential:	NC: -3°C
Differential:	NO: +4 if A £ 5 / +7 if A ³ 5

DIMENSIONS
Click on image for larger view

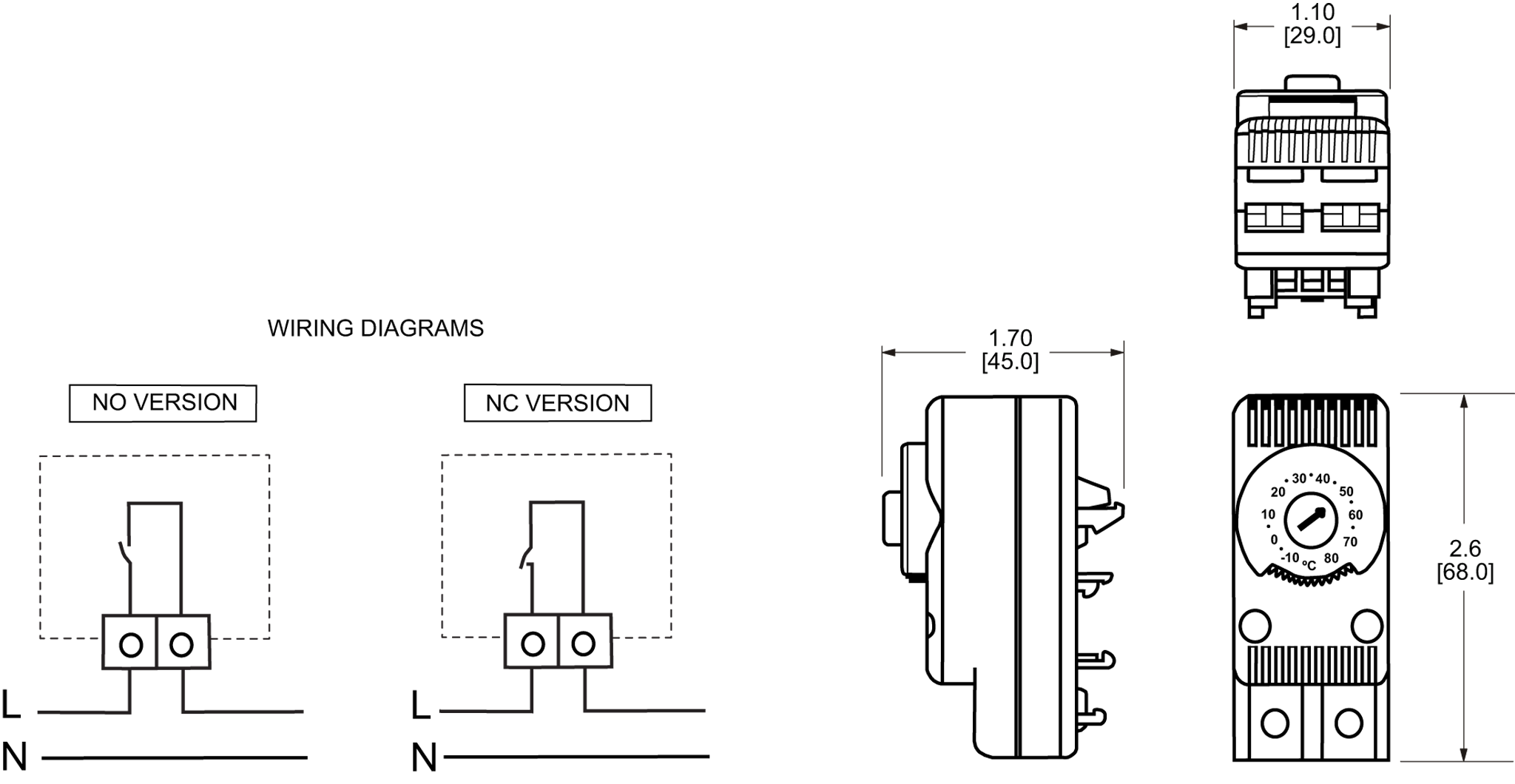

Mechanical Thermostat General Arrangement Drawing

DIMENSIONS
Click on image for larger view

Dimensions, inches [mm], are for reference only and subject to change.

Specifications are subject to change without notice. Suitability of this product for its intended use and any associated risks must be determined by the end customer/buyer in its final application.

HOW TO ORDER

Specify model number.
