TrimLine Series KXNP36
Air-to-Air Panel-Mounted Heat Exchangers

Product Photo Thumbnail
TYPE 12
MAINTAINED
Select Model Type

Electrical (Volts):
  • Standard Features
  • Accessories & Options
  • Airflow Diagram
  • Performance
  • Arrangement
  • Similar Models
  • Documents
• Closed-Loop Near-Ambient Cooling
• Convoluted aluminum element
• Epoxy-coated element
Fabricated to the same standards as the uncoated convoluted aluminum elements, these are made from epoxy-coated aluminum stock that exceeds 1000 hour salt spray testing requirements.
• Filter
All Kooltronic filters consist of a multi-layer grid of sturdy corrugated aluminum, securely held in a one-piece aluminum frame. Filters are required wherever air is drawn into an electronics enclosure or related cooling equipment to keep internal parts as clean as possible. A non-drying adhesive coating traps a high percentage of particulate matter. These filters are reusable, they may be washed and recoated with the appropriate filter recoating adhesive. Replacement filters are available and can be ordered online at kooltronic.com/spareparts.
• Heavy-Duty Steel Shell
• NEMA 12 Rating at Mounting Interface
All units NEMA 12 rated at the mounting interface ONLY.
• Removable Element Access Panel
• UL/CUL Listed

• Aluminum Shell
Where light weight and/or compatibility with appearance of aluminum enclosures are required. Unpainted Type 5052 is standard. Other types and ultraviolet-resistant baked powder finish are available.
• Filter Recoating Adhesive
This compound is a superior product for recoating filters after washing. The adhesives penetrate dirt layers to keep the filter surface tacky for longer effective performance between washings.
• Lifting Eyes
Heavy-gauge steel lifting eyes, attached to the side panels, assist in positioning units.
• Low Airflow Detector
Similar to the Airflow Switch shown in the Blower Accessories Section, the switch is installed in a suitable location in the air conditioner to detect loss of airflow, and sends a signal to a terminal block, through which user-installed wiring and warning devices are activated.
• Other voltages and frequencies
• Replacement Filters
All KOOLTRONIC filters consist of a multi-layer grid of sturdy corrugated aluminum, securely held in a one-piece aluminum frame. Filters are required wherever air is drawn into an electronics enclosure or related cooling equipment to keep internal parts as clean as possible.,A non-drying adhesive coating traps a high percentage of particulate matter. These filters are reuseable, they may be washed and recoated with the appropriate filter recoating adhesive. Replacements are available for those which become damaged or otherwise non-serviceable.
• Special materials or finishes
• Special motors, line cords or connectors
• Stainless Steel Shell
• Temperature Alarm
A thermostat is mounted inside the cabinet and attached to a sensor in the warm air return. When the air temperature increases to the set point, a signal is sent to a terminal block. User-installed wiring from the terminal block to local and/or remote warning devices (light, bell, siren, etc.) can be for normally open or closed operation.

Dimensions, inches [mm], are for reference only and subject to change.

TrimLine KXNP36 performance chart

Dimensions, inches [mm], are for reference only and subject to change.
ModelGuideline
Dimensions
(H x W x D)*		CFM @0" S.P.
TrimLine KXNP3332.88 x 12.50 x 9.750

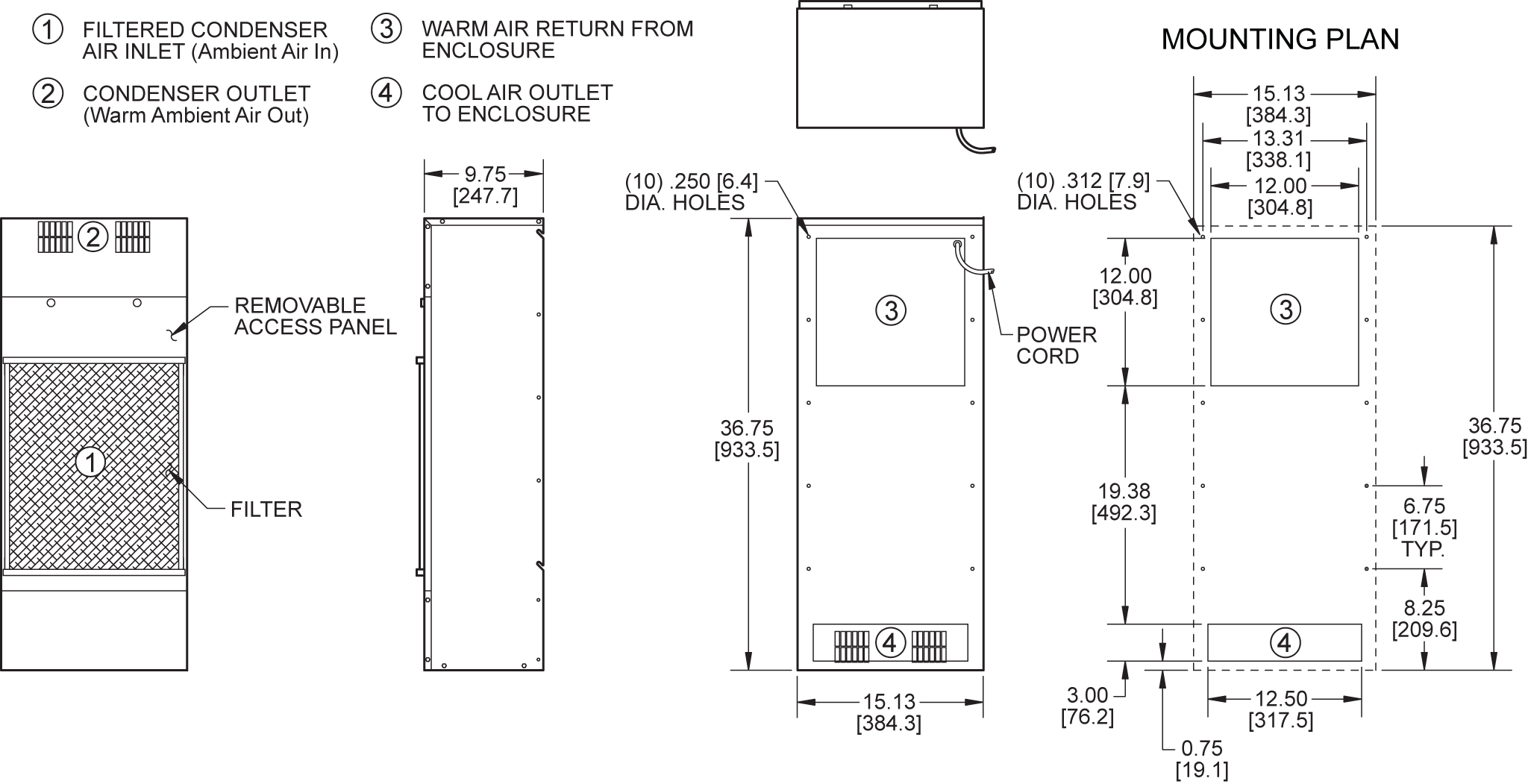

*See model specifics for drawings, dimensions, mounting or cutout plans.
Many popular units are available as 3D solid models for customer system integration. Contact Kooltronic for details.
HOW TO ORDER
Specify model number. For 230 VAC operation, add a 2 after the K. Example: K2XNP36.
