K2BC4E225/63A 4-Pole Motorized Impellers

Product Photo Thumbnail
ce-crus logo
Select Model Type

Electrical (Volts/Hz):

NOTE: This unit requires a capacitor for operation. Capacitors are sold separately and shipped loose for field installation by customer. Capacitor Part Number: 0452-64

An Inlet Ring is recommended for optimum performance. These are sold separately, to be installed by the customer. Inlet Ring Part Number: 1114-07

Select both accessories, if needed, when Requesting a Quote.

  • Standard Features
  • Accessories & Options
  • Performance
  • Arrangement
  • Similar Models
  • Documents
• 506 CFM Capacity
• Available in 230 VAC, 50/60Hz
• Class F, thermally protected
• Compact size
• External rotor design
• Low noise level
• Normally in-stock
• Precision balanced
• Precision ball bearing motors
• UL 94 V-0 plastic impeller
• UL Recognized
UL Recognized. UL/CUL Listed models are available at added cost.

• Automatic Speed Control (Basic Blowers)
• Capacitor Part Number: 0452-64
• Inlet Ring Part Number: 1114-07

K2BC4E225/63A Impeller performance chart

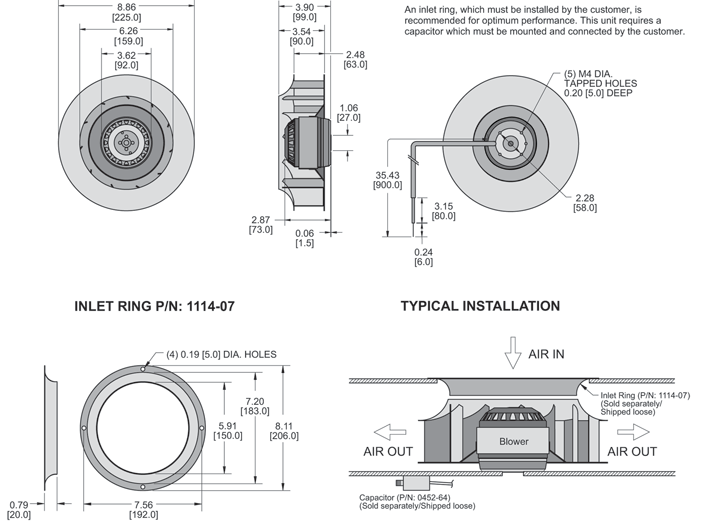

Dimensions, inches [mm], are for reference only and subject to change.
Similar Models for this product family are not currently available. Please contact Customer Service for more information.
