KBC2E180/35A Impeller

Image 1 of 1

Select Model Type

Electrical (Volts/Hz):

Model	CFM @ 0" S.P.	Cutoff S.P.	Volts	Amps	Watts	Capacitor µF	RPM	dBA	Min. Temp	Max. Temp
KBC2E180/35A	318	1.6	115/60	0.56	64	6.0	2945	64	-40°F/-40°C	158°F/70°C
	279	1.2	115/50	0.48	53	6.0	2635	61	-40°F/-40°C	158°F/70°C

TECHNICAL DATA

Model Number:	CFM @ 0" S.P.	Volts	Watts
KBC2E180/35A	318	115/60	64
Cutoff S.P. (IWG): 1.6 Amps: 0.56 Capacitor: 6.0 µF RPM: 2945 Noise db(A): 64 Min. Operating Temp. °F: -40°F/-40°C Max. Operating Temp. °F: 158°F/70°C
KBC2E180/35A	279	115/50	53
Cutoff S.P. (IWG): 1.2 Amps: 0.48 Capacitor: 6.0 µF RPM: 2635 Noise db(A): 61 Min. Operating Temp. °F: -40°F/-40°C Max. Operating Temp. °F: 158°F/70°C

NOTE: This unit requires a capacitor for operation. Capacitors are sold separately and shipped loose for field installation by customer. Capacitor Part Number: 0452-05

An Inlet Ring is recommended for optimum performance. These are sold separately, to be installed by the customer. Inlet Ring Part Number: 1114-08

Select both accessories, if required, when Requesting a Quote.

Standard Features
Accessories & Options
Performance
Arrangement
Similar Models
Documents

• 318 CFM Capacity
• Available in 115 VAC, 50/60Hz
• Class F, thermally protected
• Compact size
• External rotor design
• Low noise level
• Precision balanced
• Precision ball bearing motors
• UL 94 V-0 plastic impeller
• UL Recognized

UL Recognized. UL/CUL Listed models are available at added cost.

• Automatic Speed Control (Basic Blowers)
• Capacitor Part Number: 0452-05
• Inlet Ring Part Number: 1114-08

Click on image for larger view

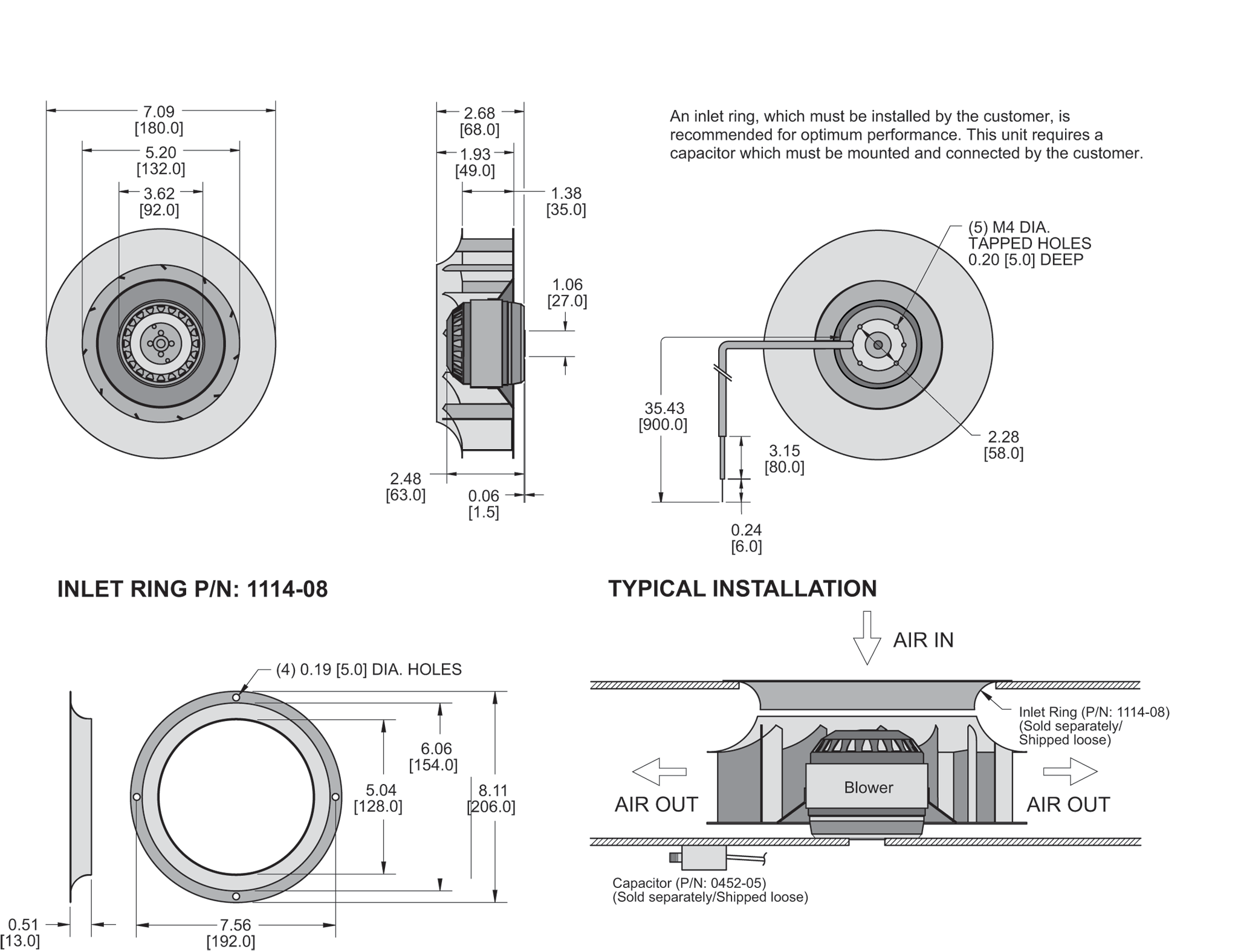

General Arrangement Thumbnail

KBC2E180/35A Impeller general arrangement drawing

Dimensions, inches [mm], are for reference only and subject to change.

Similar Models for this product family are not currently available. Please contact Customer Service for more information.
